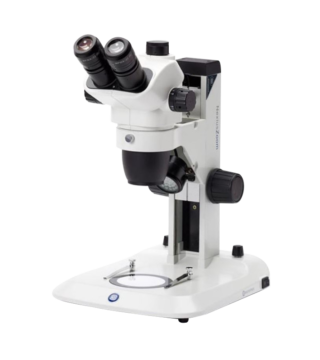

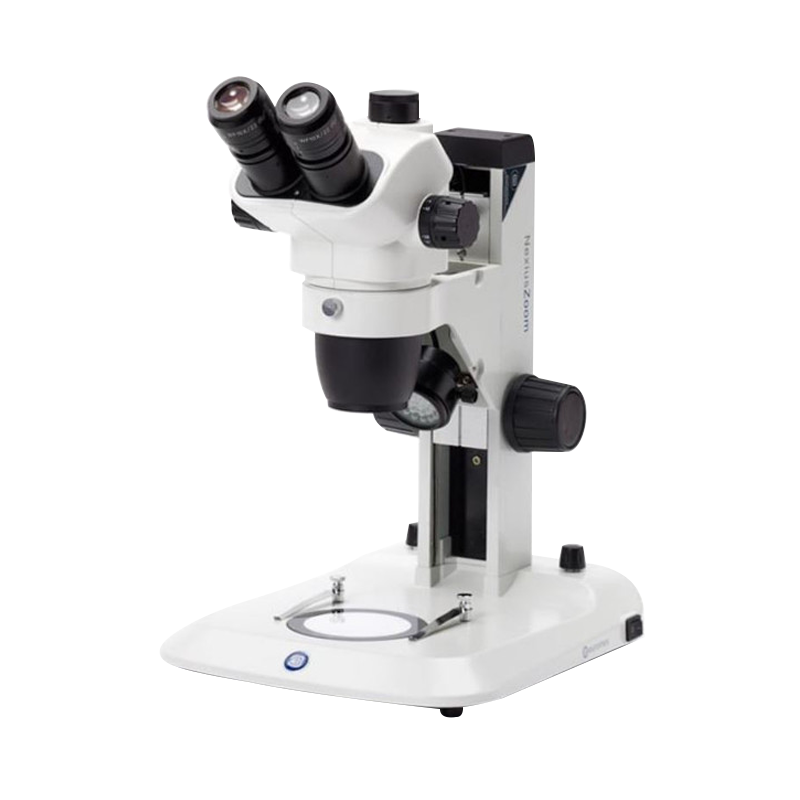

NZ1903S Euromex Stereo Nexius Zoom Mikroskop Trinokuler

Kode : NZ1903S
Berat : 19000 gram
Stok : Ready Stock (1 pcs)
Kondisi : Baru
Kategori : uncategorized
Dilihat : 40 kali
Review : Belum ada review
Hubungi kami secara langsung untuk pemesanan yang lebih cepat!
NZ1903S Euromex Stereo Nexius Zoom Mikroskop Trinokuler

*Pemesanan dapat langsung menghubungi kontak di bawah ini:

Rp 17.267.000
Ready Stock / NZ1903S
Rp 17.267.000
Tentukan Pilihan!

Bagikan informasi tentang NZ1903S Euromex Stereo Nexius Zoom Mikroskop Trinokuler kepada teman atau kerabat Anda.

Deskripsi NZ1903S Euromex Stereo Nexius Zoom Mikroskop Trinokuler

Description

  • Binocular and trinocular heads with HWF 10x/22 mm or HWF 10x/23 mm eyepieces (EVO)
  • Zoom ratio 1: 6.7, 6.7x to 45x or 1: 8.4, 6.5x to 55x
  • Ergonomic stands
  • Double 3 W LED illumination
  • Configurations up to 220x magnification
  • Large working distance
  • ESD safe models available
  • 1 years warranty

    Specification

    EYEPIECES
    The standard NexiusZoom is supplied with a pair of HWF 10x/22 mm eyepieces
    The NexiusZoom EVO is supplied with a pair of HWF 10x/23 mm eyepieces

    HEAD
    Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments
    Interpupillary distance adjustable between 54 mm and 75 mm. Trinocular head is supplied with a fixed light path beamsplitter (50:50).
    The NexiusZoom EVO models are now equipped with click-stops

    OBJECTIVES
    The standard NexiusZoom is supplied with a 1:6.7 zoom objective with 0.67x to 4.5x magnifications, a field of view from 33 mm to 4.9 mm. Working distance 110 mm

    The NexiusZoom EVO is supplied with a 1:8.4 zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4 mm to 4.2 mm. WD 110 mm

    Auxiliary lenses 0.3x, 0.5x, 0.75x, 1.5x and 2.0x are available for the standard NexiusZoom and for the NexiusZoom EVO

    All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

    POLARIZATION
    The NexiusZoom can be supplied with an optional 360° rotatable round stage with built-in polarization filter and/or an optional rotatable analyzer filter in mount to be screwed under the objective

    STAND
    • Ergonomically designed pillar or rack & pinion stand with 3W incident and 3W transmitted LED illuminations (-P and -S stands)
    • Ergonomically designed pillar stand with two 3W gooseneck type incident LED illuminations on each side and a 3W transmitted LED illumination (-PL stand)
    • Ergonomic pillar stand with rotating mirror and 3W LED transmitted and incident illuminations (-M stand)
    • Ergonomically designed universal or boom stands, without illumination (-U, -B and BC stands)
    • Articulated arm stand for table mounting or with heavy desktop stand, both without head holder, without illumination (-A and -AP stands)

    All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating

    STAGE

    NEW: 180 x 155mm X-Y mechanical stage with 76 x 55mm translation stage and transparent glass plate for NexiusZoom, fixed on stage of microscope. Only available with new microscopes (due to fixing), so it has to be ordered with the purchase of a microscope

    ILLUMINATION

    The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately


Ditambahkan pada: 17 July 2020
