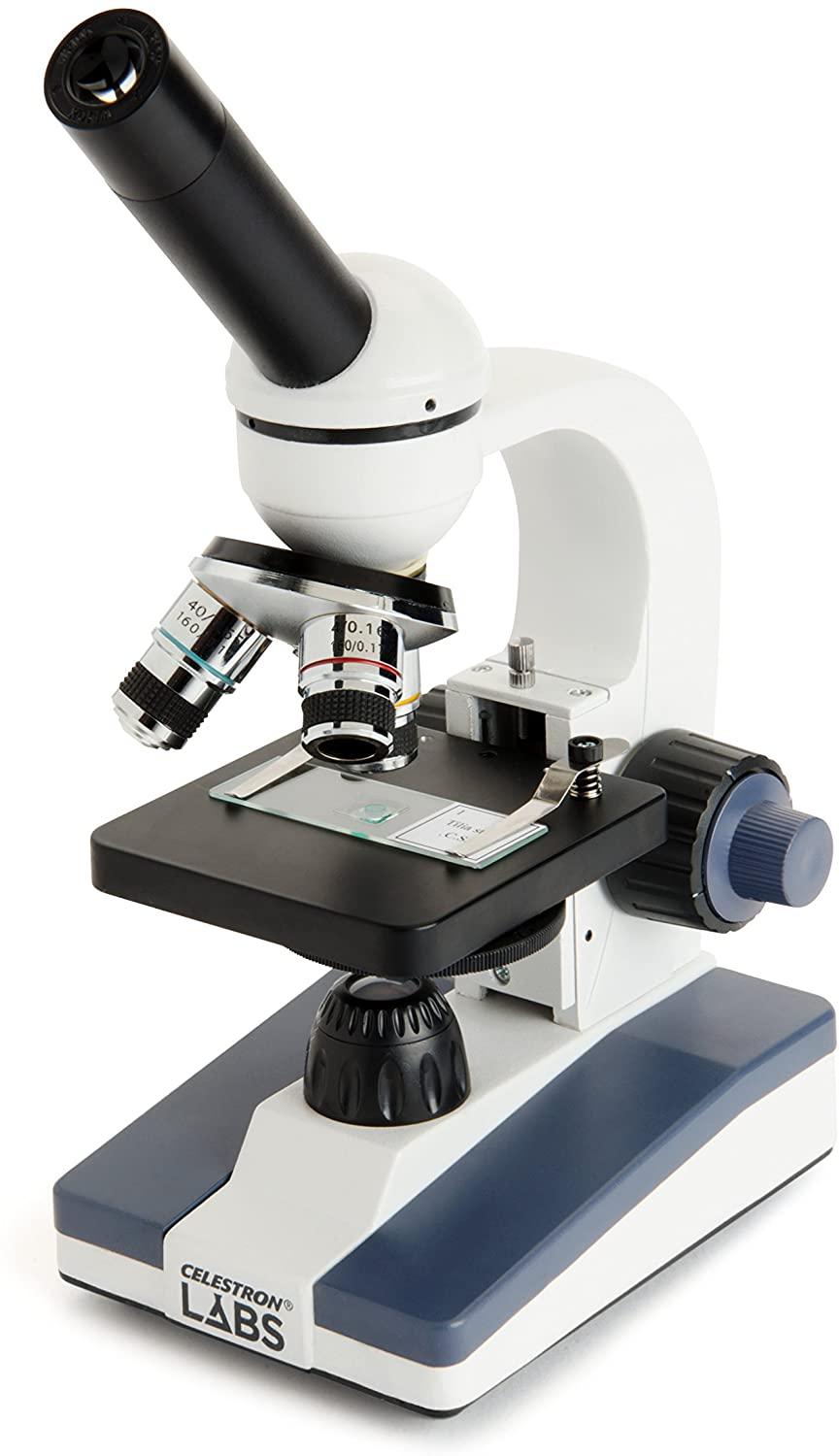

CELESTRON LABS CM1000C Cordless Monocular Microscope

Celestron Lab’s CM1000C Cordless Monocular Microscope is ideally suited for the classroom and lab environments with its 360° rotating head for easy sharing, an eyepiece set at a comfortable 45° angle, and broad magnification range. Its three-position turret holds the 4x, 10x, and 40x objectives and the instrument comes with two eyepieces that produce magnifications from a practical 40x to a powerful 1000x.

The 3.5 x 3.5″ stage has metal slide/specimen clips, and an adjustable-intensity halogen bulb under the stage provides the necessary illumination. It is powered by either a US 110 VAC plug or three included AA batteries for use in the field. The manually adjustable iris and condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the dual coarse/fine coaxial focus knobs to bring all specimens into sharp, clear focus.

Optical System

360° rotating head facilitates sharing
One 10x wide field eyepiece
One 25x wide field eyepiece
4x, 10x, and 40x objectives
Three-position click-stop turret with grip ring
40x, 100x, and 400x magnification with 10x eyepiece
100x, 250x, and 1000x magnification with 25x eyepiece

Lighting

0.65 NA condenser
Lower LED illumination, adjustable intensity
Disc diaphragm with six apertures

Focusing

Coarse/fine coaxial focus knobs
Left and right focus knobs for left and right-handed use

Stage

3.5 x 3.5″ square stage
Metal specimen/slide clips
Accepts 3 x 1″ (76.2×25.4mm) specimen slides

Microscope CELESTRON Type Compound
Body Type Rigid one-piece
Eyepiece 10x power
25x power
Nosepiece Three position with click stops
Objective(s) 4x, 10x, 40x
Head 360° rotating, 45° incline
Focuser Coaxial, coarse/fine focus knob
Light Source LED, lower
Light Control Adjustable, dial
Power 110 VAC
3 x AA batteries
Specimen Stage 3.5 x 3.5″ (8.8 x 8.8 cm)
Overall Dimensions 12.0 x 6.3 x 4.6″ (30.5 x 16.0 x 11.7 cm)
Weight 3.9 lb (1.8 kg)
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 15.1 x 10.2 x 7.0″
