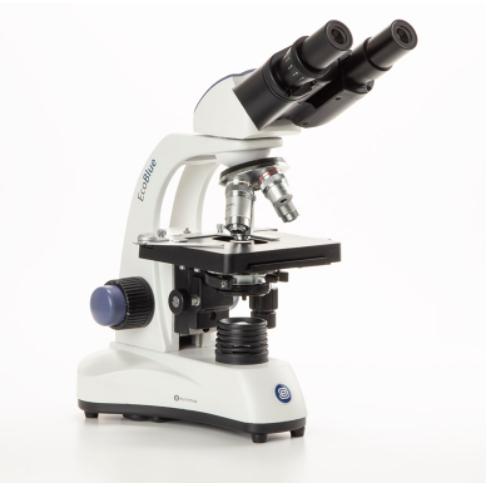

Microscope Binokuler Euromex Ecoblue EC1152B MADE IN

HOLLAND

The outstanding optical performance of the ergonomic Euromex BlueLine microscope enables long productive working sessions for students for beginner, intermediate, and advanced science teaching classes. Microscope for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling

The modern microscope of the EcoBlue series are especially developed for educational purposes with primary focus on ergonomic and excellent price/quality ratio. These microscope are supplied with secured eyepieces, achromatic objectives and an adjustable rack stop to prevent damage to sample and objectives

Highlights
WF10x/18 mm eyepiece(s)Monocular,
upright models
Revolving nosepiece for four achromatic objectives
Models with integrated mechanical stage available
Coaxial coarse and fine adjustments with rack stopHeight adjustable abbe condenser with iris diaphragm and filter holder

SPECIFICATION
EYEPIECE(S)
Wide field WF 10x/18 mm eyepiece

HEAD
• 30° inclined tubes
• The interpupillary distance is adjustable between 48 and 75 mm
• Diopter ± 5 diopter adjustment on left tube
• All heads are 360° rotatable

NOSEPIECE
• Revolving nosepiece for four objectives on ball bearings

OBJECTIVES

• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65 objectives
• S100x oil immersion objective
• The S40x, S60x and S100x oil immersion objectives are spring loaded
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objective
• The coarse adjustment are equipped with friction control

STAGES
• Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage

CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION
• Supplied with an adjustable 1 W NeoLED™ illumination system for increased light output
• Supplied with rechargeable batteries and an external 100-240 V battery charger/mains adapter

PACKAGING
• Supplied with power cord or mains adapter-charger, dust cover, spare fuse, user manual and 5 ml immersion oil for models with an S100x objective
• All packed in a polystyrene box
